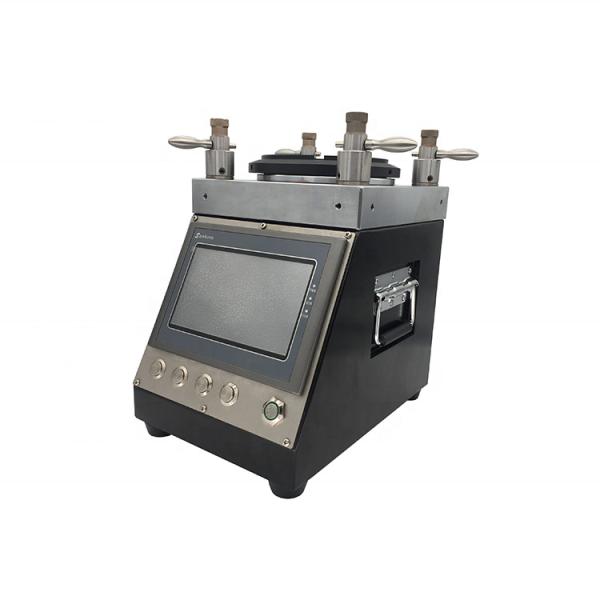

Programmable Optical Patch Cord Manufacturing Machine Optic Connector Polishing CLX-03E

Brand Name : CLX

Model Number : CLX-03E

Place of Origin : Guangdong,China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 set/week

Delivery Time : 5-8 work days

Packaging Details : Carton Packing , or customized requirements

Type : Fiber Optic Connector Production Machine

Height of plate jump : <10um

Applicable scene : Factory or Laboratory

Application : Fiber connector Polishing

Machine size : L*W*H 240*240*260mm

Net weight : 28 kgs

Contact Now

Programmable Optic Connector Polishing Optical Pigtail Production Line Patchcord Manufacturing Fiber Patch Cord Making

Description:

CLX-03E is the new model polishing machine with programmable software and PLC control system. It presets 50 pairs of polishing parameters. The polishing quality doesn’t excessively depend on operator’s experience and technology any more. The new operators are easy to get quality polished end faces after using CLX-03E.

Model:CLX-03E

Place of Origin:Shenzhen China

Key Features:

Designed for polishing high quality fiber optic patch cord.
Built-in mass production and Rework modes.
Use with high density polishing jig, and achieve high efficiently polishing.
Preset 50 pairs of polishing parameters, and convenient for new operators learning.
High quality control device and motor, provide strong power for polishing.
Applicable to SC, FC, ST, E2000, LC, MU, MPO connectors or ferrules polishing.
Easy to get quality end face and perfect geometry results if using original Neofibo jigs and consumables.
Modular design for after-sale maintenance.

Technical Parameters:

Parameter	Value
Rubber pad size	Diameter 127mm or 5”
Lapping Film size	Diameter 127mm
Time Range	0-999 sec
Rotation Speed range	5 – 240 rpm
Rotation Plate ID	129mm
Power Source	220V AC, 50/60 Hz
Net weight	28 kg
Machine Dimensions	L380W220WH360 mm
Package	Pearl cotton cushion pads and carton
Packing Dimensions	470350460 mm

Standard Configuration:

Description	Qty	Unit
Main machine	1	Set
AC power cable	1	Piece
Patch cord shelf	1	Set
